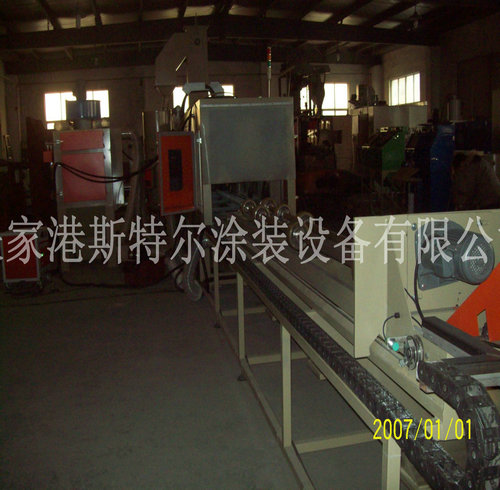

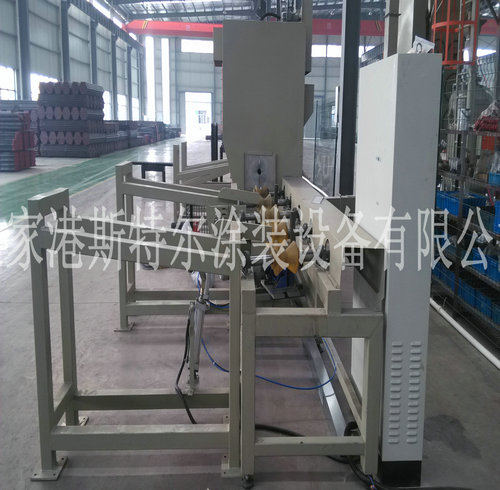

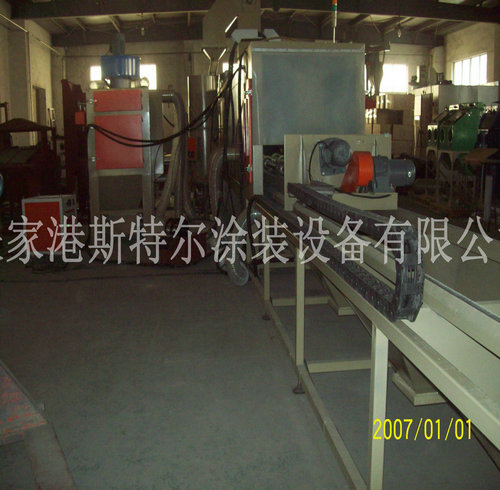

管道外壁自動噴砂機
◆應用區間 Applicable scope
管類(lei)類(lei)件,如:無縫鋼管、園鋼、絲杠、絲杠、玄幻(huan)柱體(ti)、圓(yuan)筒(tong)形類(lei)、柱體(ti)型工件產品;采取雙槍(qiang)(可(ke)按需(xu)求多槍(qiang))及漩風式抑(yi)塵(chen)器(qi)和光(guang)電技術光(guang)感應功能性,提高了(le)了(le)的(de)生產率及有很大的(de)的(de)少了(le)維(wei)修培訓率。 (此cpu型號需(xu)既定)
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆重點技藝參數表 Main technical parameters
|
機器設備機型 Model |
STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
|
事情艙尺寸大小 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
|
設備尺寸大小 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
|
壓縮的空氣質量源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
交流電源 Power |
220v 50Hz |
220v 50Hz |
|
變頻柜直流無刷電機調壓器 Governor |
250W×2 |
250W×2 |
|
分離法器同步電機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
|
剝離 器風速 Air separator |
35m3/min |
35m3/min |
|
機設備單重 Machine weight |
900kg |
900kg |
